Solvo is Farfisa’s digital door panel for large residential complexes and substantial buildings. Compact, solid and practical, it solves the usual problem of large installations: a single unit covers up to 20,000 users, with no extra modules to add as the building grows.
Installation runs on the DUO system: two non-polarised wires, with the module powered directly from the bus. It is compatible with every Farfisa DUO indoor station, which makes it possible to replace an ageing panel without touching the apartments.

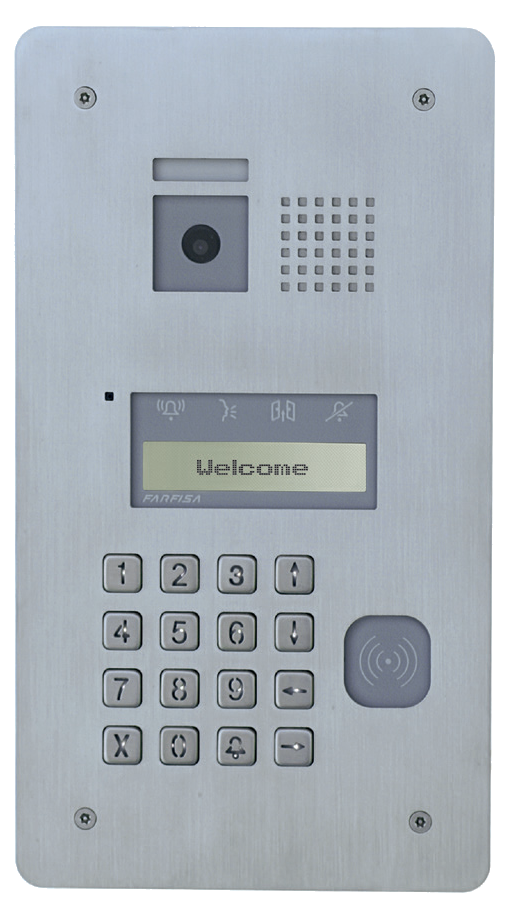

The plate is steel, with stainless TORX security screws, a backlit keypad, an enlarged display and a built-in camera with panoramic optics. The TD2000R model can take a proximity reader and the VIGIK system. Audio-only versions are also available (TD2000A and TD2000RA).
What this unit does
- Up to 20,000 users on a single unit
- DUO system: two non-polarised wires
- Module self-powered from the bus
- Compatible with every Farfisa DUO indoor station
- Built-in camera with panoramic optics
- Fast directory search
- Steel plate, stainless TORX security screws
- Backlit keypad and indicator LED
- Password for access control
- User programming by PC/USB
- Built-in multifunction relay
The versions
| Feature | TD2000 | TD2000R |
|---|---|---|
| Video | Yes | Yes |
| Proximity reader can be fitted | No | Yes |
| VIGIK system can be fitted | No | Yes |
| Audio-only version | TD2000A | TD2000RA |
The proximity reader for the TD2000R is not included in the box.
Specifications source : Farfisa — Solvo (FR)
