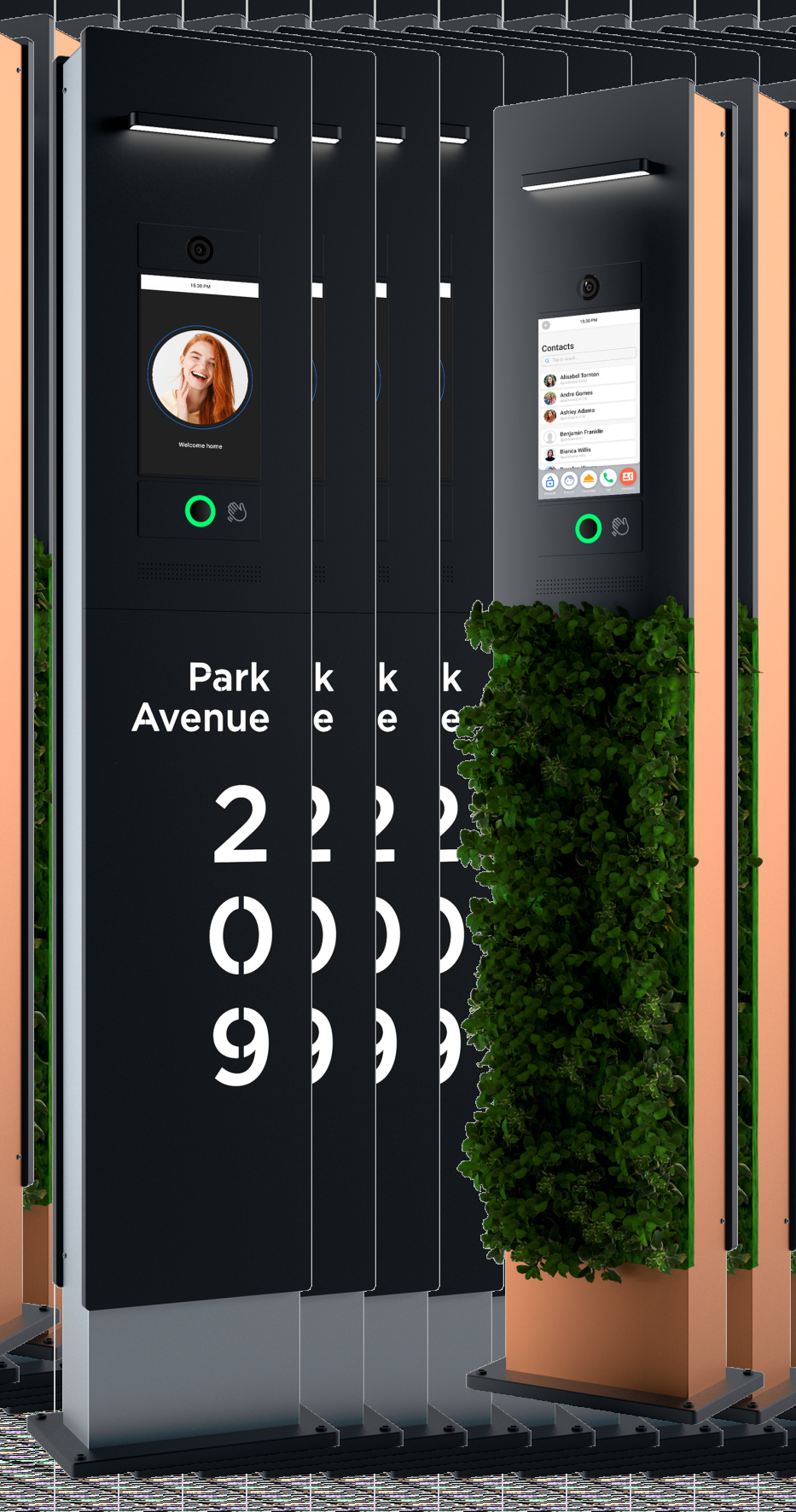

The Obelisk is not a door panel on a post: it is a free-standing column over two metres tall, designed for site entrances, guard gates and driveways where there is no wall to mount a station on. It carries a 10-inch IPS touch screen readable in full sun, a surveillance camera and a navigation directory for the complex.
Face recognition opens the gate without the resident lowering a window. The screen can also show personalised information — an event reminder, a message from the board — rather than staying a simple call plate.

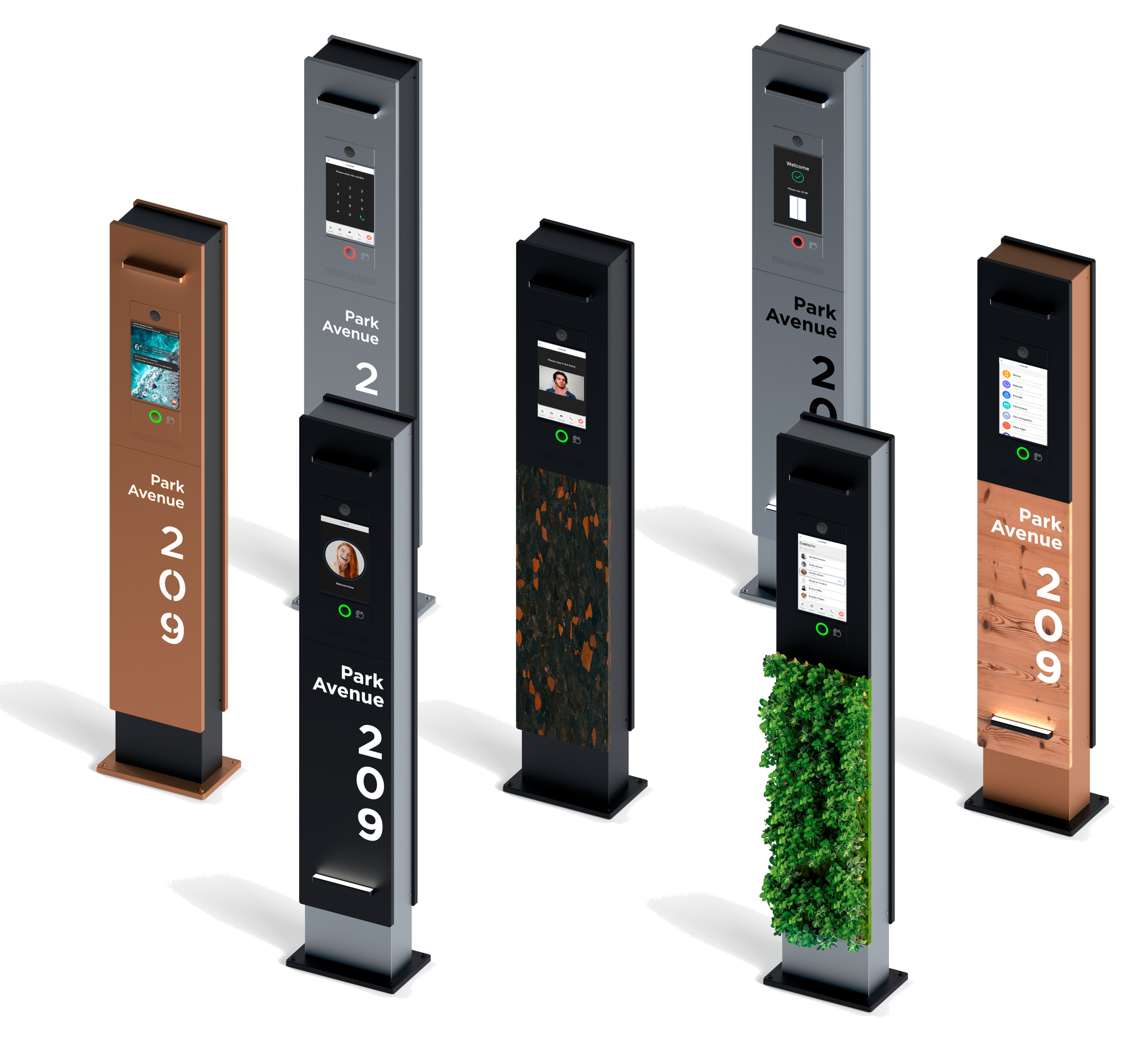

À-la-carte configuration is what sets the Obelisk apart: the base and cladding are chosen from wood, stone, granite, stainless steel, moss, glass or plexiglass. Two neighbouring buildings need not receive the same column.
What this unit does
- 10-inch IPS touch screen, readable in full sun
- Automatic face recognition
- UKEY mobile access and BAS-IP app
- Directory and concierge calling
- Calls the lift to the floor
- Entry by QR, guest link, PIN, card or licence plate
- Built-in heated plate, operates down to −40 °C
- À-la-carte cladding
Technical specifications
- Display
- 10-inch colour IPS LCD, backlit and heated
- Camera
- 1/4-inch, 2 MP, 120° horizontal
- Video
- Full HD 1920 × 1080, H.264 Main Profile
- Night lighting
- 6 LEDs, 0.01 lux sensitivity
- Protection ratings
- IP65 · IK06
- Operating temperature
- −40 °C à +65 °C
- Power
- +12 V DC, 6.5 W (3.6 W standby)
- Dimensions
- 202,2 × 34,0 × 14,2 cm
- Base dimensions
- 38,0 × 48,0 cm
- Body
- Metal
- Base finishes
- Wood, stone, granite, stainless steel, moss, compound, glass, plexiglass
- Access control output
- Wiegand-26+
Specifications source : BAS-IP OB-01 · BAS-IP
